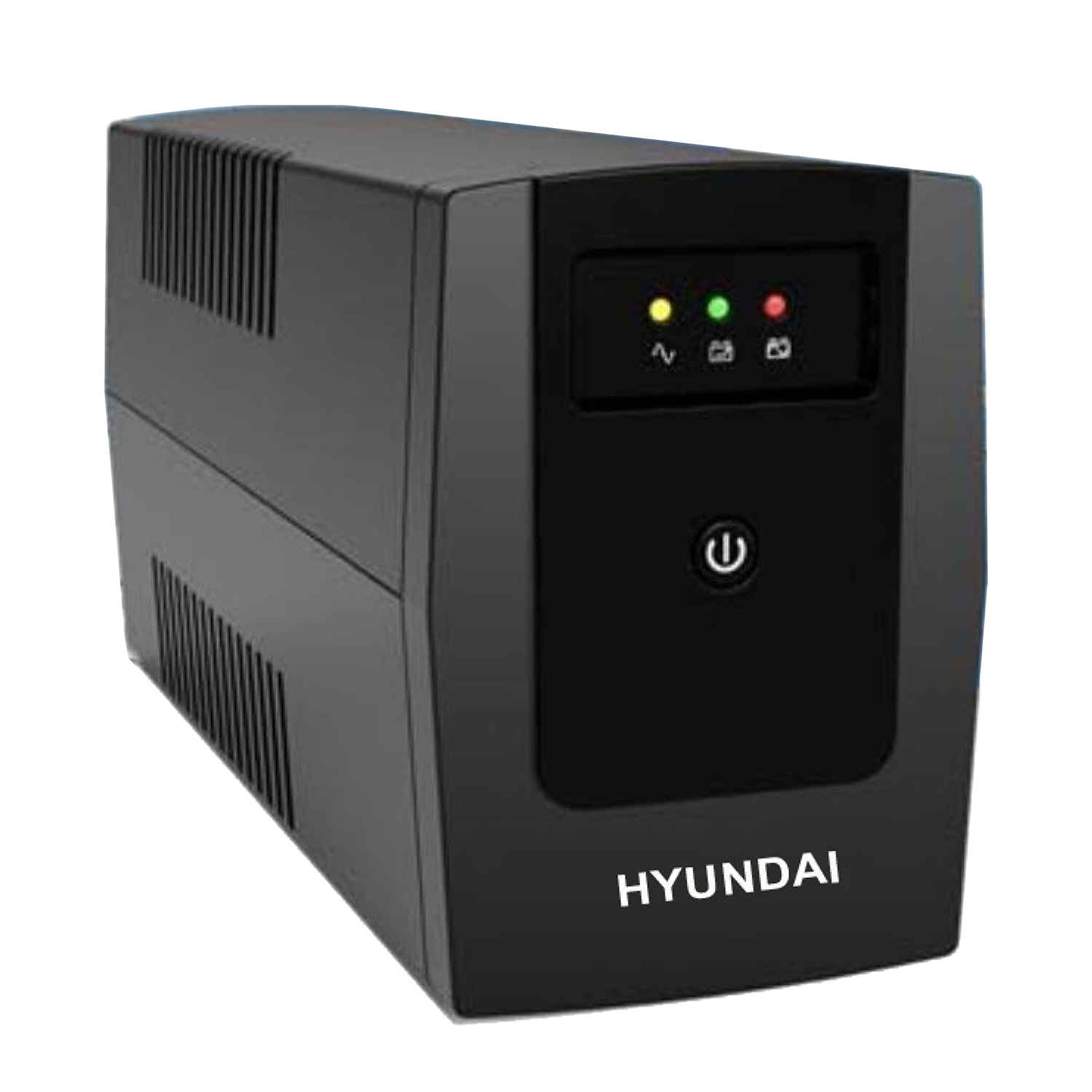

Line-Offline UPS HD-500F ~ HD-2000VA
| ✩ | Model: | HD-500F ~ HD-2000VA | |
| ✩ | Capacity: | 500VA ~ 2000VA | |
| ✩ | Catalogue: | CAT_500-2000VA6e65.pdf (1.80Mb) | |
Specifications - Line-Offline UPS HD-500F ~ HD-2000VA
| INPUT | |
| Voltage range | 100V/110V/120V:80~150 VAC 220V/230V/240V:162~295 VAC 220V:145~295VAC (optional) |
| Frequency range | 50/60Hz±10% (auto-sense) |
| OUTPUT | |
| Voltage range | 100V/110V/120VAC ± 10% or 220V/230V/240V ± 10% |
| Frequency range | 50/60Hz 1% (auto-sense) |
| Transfer time | Typical 2 ~ 7ms; Max 10Ms |
| BATTERIES | |
| DC voltage | 12V 24V |
| Configuration | 12V/4.5Ahx1 12V/7Ahx1 12V/8Ahx1 12V/7Ahx2 12V/7Ahx2 12V/8Ahx2 |
| Recharge time | 6~8h |
| Battery overcharge | Yes |
| ALARMS | |
| Overload | Yes |
| OTHERS | |
| Noise level | =< 45Db(1m) |
Notice
- Please approach our authorized dealer/distributor for details.
- This data may be revised without prior notice. All pictures shown are for illustration purpose only.
